General Park ecological Algorithm integrated machine is a soft and hard integrated ecological product jointly launched by Computer Energy and ecological partners, focusing on the park field, using BM1684 powerful Deep learning processor, built-in park/campus/community and other scenarios required a variety of special 深度学习 algorithms, effectively ensure the safety of the park/campus/community and other personnel, equipment assets, one-click deployment, effective in time. To provide customers with the most competitive intelligent solutions.
Rich algorithms, involving video full target analysis, behavior analysis, perimeter/fireworks warning and other algorithms, on-demand call, free combination, 深度学习 to enable general park intelligent management

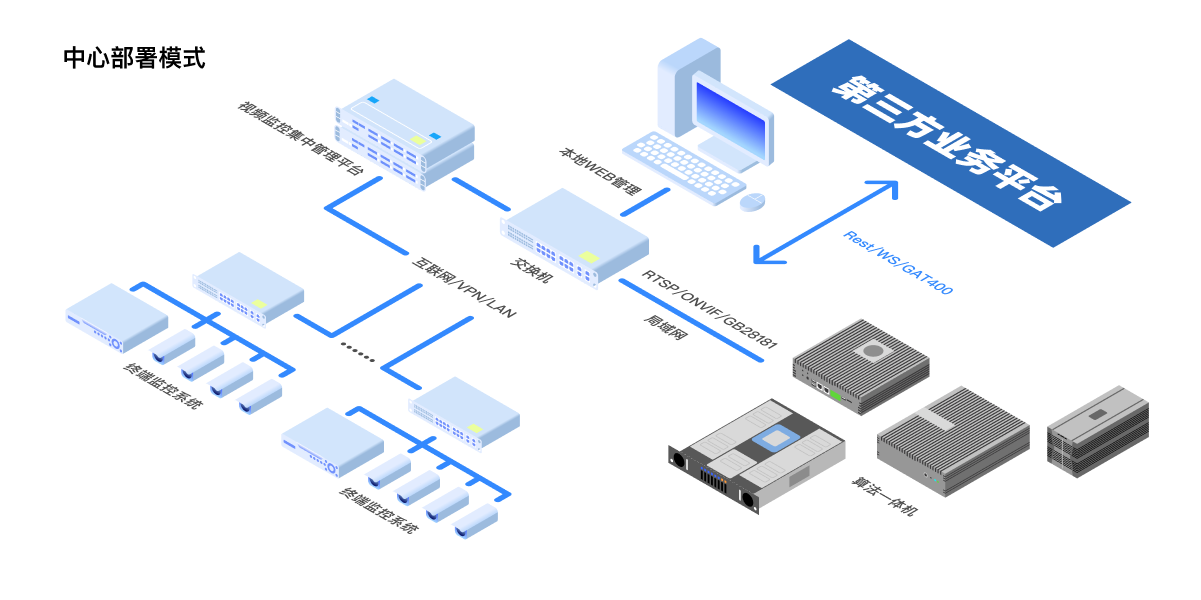

Free placement in all kinds of environments, Completed in 5 minutes. Support RTSP standard protocol. Support through ONVIF protocol scanning equipment. Support national standard stream access
Global information overview, data statistics, video preview, intelligent search to map, early warning layout control, HDMI direct, event video optional intelligent analysis management platform.
8/16 channel 1080p HD video intelligent analysis , Each video supports video full target analysis and 2 other algorithms at the same time
Processor
BM1684
Main control RISC-V：8-core ARM A53 @2.3GHz
Peak computing power：10.6 TOPS（INT8）/1.3TFLOPS（FP32）
Operating system
Linux system
Video decoding type
H.264 & H.265
Data acquisition equipment
The device must support the RTSP standard protocol, ONVIF protocol, or GB28181 protocol
Intelligent parameter
Video parsing
Support 16 1080p HD video intelligent analysis
Each video can support 14 algorithms at the same time
General campus algorithm
Total target analysis
Motor vehicle attributes, license plate recognition, non-motor vehicle attributes, human body attributes, face attributes, tricycle attributes, target characteristics
Behavior analysis
Wandering, leaving, gathering, talking on the phone, smoking
Alert algorithm
Trip wire intrusion, area intrusion, channel blockage, vehicle congestion, area statistics, illegal fireworks detection, electric vehicle detection, garbage detection
Software function
Abnormal alarm
When an exception occurs, both the alarm and message are recorded
Event management
Abnormal events can be uploaded or saved to a specified location, flexible retention time, and provide access to the function
Real-time preview
Preview surveillance videos online in real time. A maximum of 9 videos can be previewed simultaneously
Memory
Standard configuration
12GB LPDDR4x 128bit 64GB/s
eMMC
Standard configuration
32GB
Interface
Network interface
10/100/1000Mbps self-adaptation*2
External interface
Support USB/HDMI/SATA/RS-232 / RS-485 / TF, LTE optional
Power interface
Dc 12V
Operating temperature
Temperature range
-20°C ~ 60°C
Power dissipation
Typical value
~20W
Structural dimension
Length * width * height
188 * 148 * 44.5 (mm)
Class of protection
Active heat dissipation IP30
Processor
BM1684
Main control RISC-V：8-core ARM A53 @2.3GHz
Peak computing power：10.6 TOPS（INT8）/1.3TFLOPS（FP32）
Operating system
Linux system
Video decoding type
H.264 & H.265
Data acquisition equipment
The device must support the RTSP standard protocol, ONVIF protocol, or GB28181 protocol
Intelligent parameter
Video parsing
Support 8 1080p HD video intelligent analysis
Each video can support 3 algorithms at the same time
General campus algorithm
Total target analysis
Motor vehicle attributes, license plate recognition, non-motor vehicle attributes, human body attributes, face attributes, tricycle attributes, target characteristics
Behavior analysis
Wandering, leaving, gathering, talking on the phone, smoking
Alert algorithm
Trip wire intrusion, area intrusion, channel blockage, vehicle congestion, area statistics, illegal fireworks detection, electric vehicle detection, garbage detection
Software function
Abnormal alarm
When an exception occurs, both the alarm and message are recorded
Event management
Abnormal events can be uploaded or saved to a specified location, flexible retention time, and provide access to the function
Real-time preview
Preview surveillance videos online in real time. A maximum of 9 videos can be previewed simultaneously
Memory
Standard configuration
6GB
eMMC
Standard configuration
32GB
Interface
Network interface
10/100/1000Mbps self-adaptation*2
External interface
USB3.0 *2 / HDMI *1 / TF *1 / Audio *1
Power interface
Ac 220V
Operating temperature
Temperature range
-20°C ～ 70°C
Power dissipation
Typical value
-18W
Structural dimension
Length * width * height
185 * 170 * 43.6（mm）
Class of protection
Passive cooling IP40
